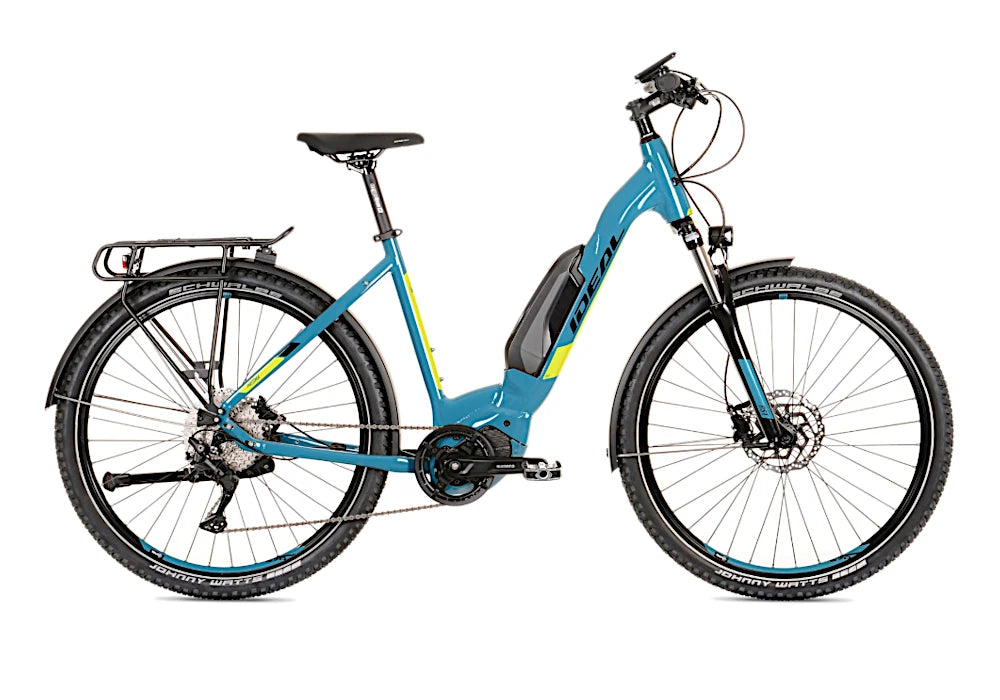

The Ideal Prisma E810 Wave is an electric bike that combines cutting-edge technology and sleek design. The frame is constructed with lightweight and sturdy AL6061-T4/T6 aluminum and features advanced hydroforming for optimized performance. The Shimano STEPS system provides a smooth and powerful riding experience, while the internal brake and gear cables enhance the bike's sleek appearance. Ideal for off-road excursions or daily commutes, the Prisma E810 Wave is the ultimate electric bike for adventure-seekers who demand the best.
Specification
Frame |
eAdventure 27.5, AL6061-T4 / T6, Shimano STEPS, hydroforming, internal brake & gear cables, semi-integrated battery |
Size |
46/50 cm |
Fork |
RST Blaze-MLC, 100 mm, lockout, adjustable preload |
Rear derailleur |
Shimano Deore RD-M5120 SGS |
Shifter |
Shimano STEPS SW-E7000-L switch // Shimano Deore SL-M4100-R |
Display |
Shimano STEPS display SC-E6100 |
Drive unit |
Shimano STEPS center drive unit DU-EP800, 36V, 250W, 85Nm, sports |
Battery |
Shimano STEPS (down tube) BT-E8010, 36V, 14Ah, 504Wh |
Crankset |
Shimano STEPS FC-EM600, 38T |
Casset sprocket |
Shimano CS-M4100-10, 11-42T |
Chain |
Shimano CN-E6090-10 |
Front hub |
Shimano HB-M3050 |
Rear hub |
Shimano FH-M3050 |
Rims |
Mach1 670, 584-21 |
Tyres |
Schwalbe 60-584 (27.5x2.35), Johnny Watts |
Brakes |
Shimano BR-MT200 / BL-MT201 hydraulic disc brakes 180/180 mm |
Handle bars |
Ergotec Low Riser aluminum bar, 720 mm, safety level 4 |
Stem |
Ergotec Crab 2 aluminum, 31.8 mm, safety level 4 |
Seat post |
Ergotec Atar aluminum, 31.6 mm, safety level 4 |
Saddle |
Selle Royal Premium, New Essenza H / D, Moderete |
Lighting set |
Herrmans H-Black MR8, 50Lux front / AXA Blue Line 2 rear |
Kickstand |
Atran Rex-HV rear kickstand |
Our e-bikes are manufactured using
top-notch materials for every component to ensure durability and endurance.
- The bike frames use carbon fibre, steel, or aluminium alloy.
- The batteries are
lithium-ion/polymer, encased with high-grade plastic. - Wheels are made of high-end aluminium alloy or carbon fibres.
- Brake discs are made of high-quality stainless steel.
- Suspension features steel springs with aluminium or magnesium forks.
